Termopareti ®

The insulating metal panels called TERMOPARETI® are the well-known monolithic panels researched and made by ELCOM SYSTEM S.p.A. (certified UNI EN ISO 9001) to offer the best in the field of light prefabrication.

Technical characteristics

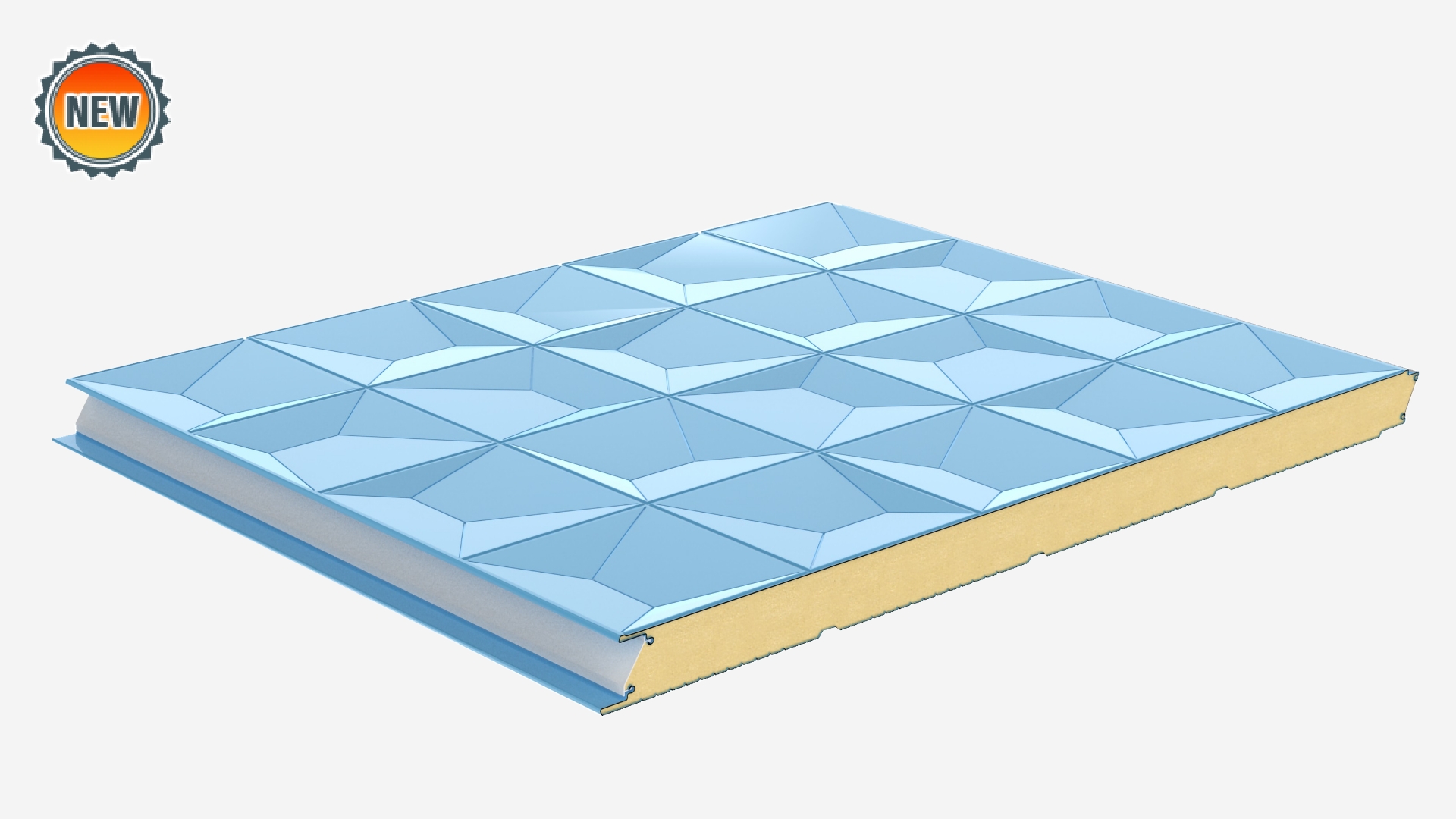

The insulating metal panels called TERMOPARETI® are the well-known monolithic panels researched and made by ELCOM SYSTEM S.p.A. (certified UNI EN ISO 9001) to offer the best in the field of light prefabrication. With the panels TERMOPARETI® it’s possible to realize walls, claddings internal partitions and false ceilings. For tailor made projects the company produces particular joints and special components such as spherical, right and curved connections with thermic cut, to be used to reach a high aesthetic standard.

External steel supports

External steel supports: they are obtained from cold profiling of coils of different material: carbon steel coated with zinc S 250GD according to UNI EN 10326 norms with mechanical characteristics as foreseen in the D.M. of 14.01.2008  and tolerances as UNI EN 10143 norm; aluminium according to UNI EN 1396 norm, with a minimum breaking load of 150 MPa; copper according to UNI EN 1172; and stainless steel according to EN 10088-1 norms; COR-TEN

The finishing of steel and aluminium supports consists of an organic coat obtained from a cycle of hot standard polyester prepainting, according to EN 10169. On request, different coatings such as  PVC alimentary or PVDF can be fournished.

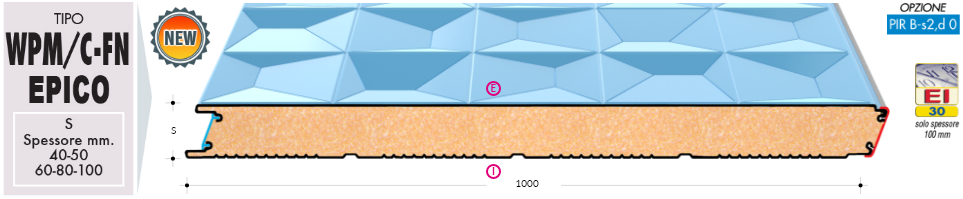

Types

Tolerances (according to the enclosed D uni en 14509)

Thickness of panels: (respective to the declared value)
D ≤ 100 mm ± 2 mm
D > 100 mm ± 2%

Length of panels ± 5 mm.

Flatness:
L = 200 mm l ≤ 0,6 mm
L = 400 mm l ≤ 1 mm
(L = distance between the points of measurment)

Out of square
s ≤0,6% of the useful width

Peculiar characteristics

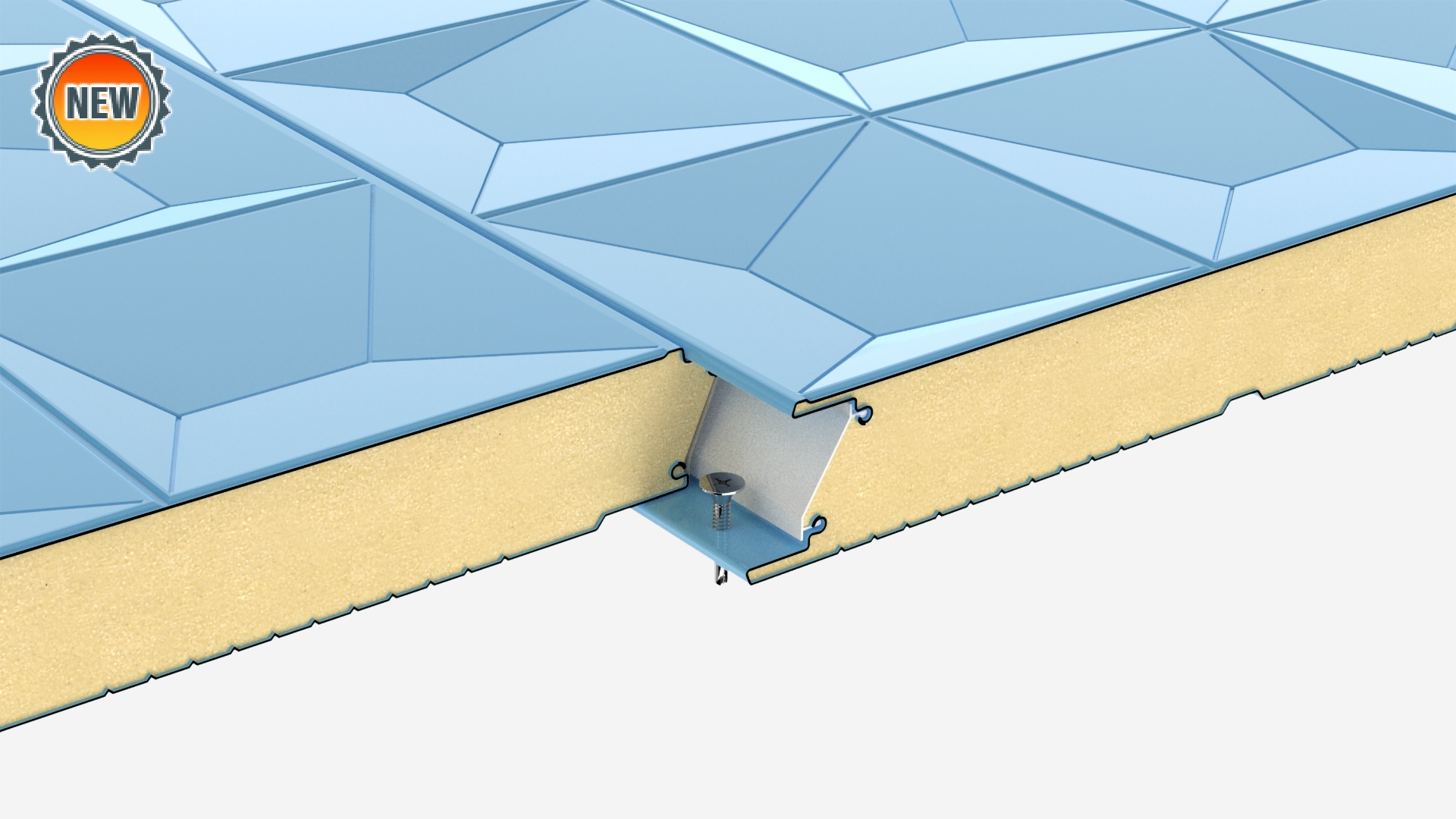

The panels TERMOPARETI® are equipped, in the female joint, with a special continuous PVC fixed-in profile, to increase the overall fixing stability of the panel and to avoid detachments of the supports from the insulation either during their handling or in the working phase (excluded thicknesses mm. 120-150-180)

Insulations

Expanded polyurethane (PUR), CFC free, according to UNI EN 13165 norm. On request foams with characteristics of fire-reaction class E, panel class B S3 d0 UNI EN 13501-1. In case of particular needs, foams with a superior fire-reaction (PIR), can be produced, panel class B S2 d0 UNI EN 13501-1.

The main characteristics of the foams are:

Density: 40 kg/m3~
Compressive strenght: 140 -150 KPa
Impermeabilità: 98% di cellule chiuse (materiale anigroscopico)
